Name: KING TONY 19600809 45° Offset Double-Ring Wrench 8 × 9 mm
Brand: KING TONY
SKU: KT-19600809
Price: 200 TWD
Availability: InStock

The KING TONY 19600809 is a metric 45° offset double-ring wrench with 8 mm and 9 mm ends. Its 175 mm overall length and thin-wall ring heads provide an offset profile for suitable recessed fasteners and maintenance tasks. This listing is for one wrench, not a multi-piece wrench set.

Features

Two metric ring ends: 8 mm and 9 mm on one tool.
45° offset ring heads and a thin-wall design provide clearance above the work surface where the fastener position allows.
Chrome-vanadium alloy steel construction with a chrome-plated finish.
The manufacturer specifies DIN 838 for the metric range.

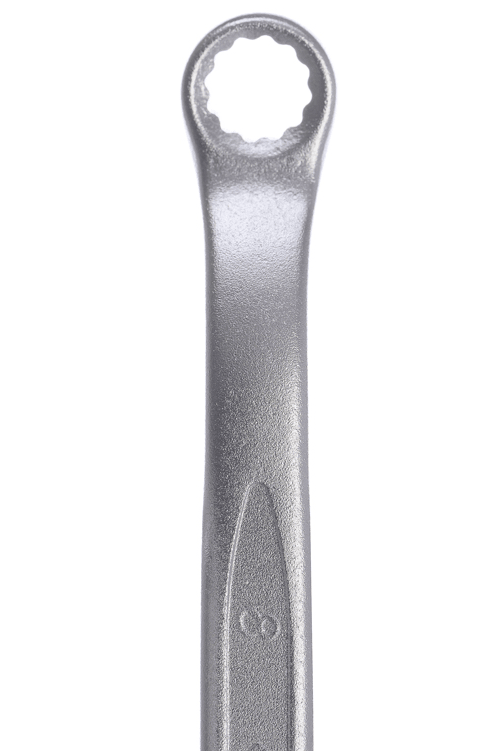

KING TONY 19600809 8 × 9 mm wrench, close-up of the actual 8 mm ring end

Select the correct ring size

The close-up shows the 8 mm end of this wrench; the opposite end is 9 mm. Match the ring size to the nut or bolt head before use.

Manufacturer 1960-series 45° offset ring-wrench geometry illustration, not a product photograph or to scale; this item is 19600809, 8 × 9 mm and 175 mm long

Manufacturer's 1960-series geometry illustration, not a product photograph and not to scale. The 45° annotation shows the ring-head offset and L denotes overall length. This listing is the 19600809, 8 × 9 mm wrench, 175 mm long, sold individually.

Specifications

Brand	KING TONY
Manufacturer model	19600809
Tool type	45° offset double-ring wrench
Ring sizes	8 × 9 mm (metric)
Overall length L	175 mm
Ring-head offset	45°
Material	Chrome-vanadium alloy steel
Finish	Chrome plated
Weight (manufacturer Taiwan specification)	55 g
Metric standard	DIN 838
Sales unit	One wrench (支)

Package contents

KING TONY 19600809 8 × 9 mm 45° offset double-ring wrench ×1

Features

Two metric ring ends: 8 mm and 9 mm on one tool.
45° offset ring heads and a thin-wall design provide clearance above the work surface where the fastener position allows.
Chrome-vanadium alloy steel construction with a chrome-plated finish.
The manufacturer specifies DIN 838 for the metric range.

Select the correct ring size

The close-up shows the 8 mm end of this wrench; the opposite end is 9 mm. Match the ring size to the nut or bolt head before use.

Specifications

Brand	KING TONY
Manufacturer model	19600809
Tool type	45° offset double-ring wrench
Ring sizes	8 × 9 mm (metric)
Overall length L	175 mm
Ring-head offset	45°
Material	Chrome-vanadium alloy steel
Finish	Chrome plated
Weight (manufacturer Taiwan specification)	55 g
Metric standard	DIN 838
Sales unit	One wrench (支)

Package contents

KING TONY 19600809 8 × 9 mm 45° offset double-ring wrench ×1
