KING TONY 11205SQ 5-Piece Broken Screw Extractor Set
Hand Tools
$630.00/ 組
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$3,400.00/ 組

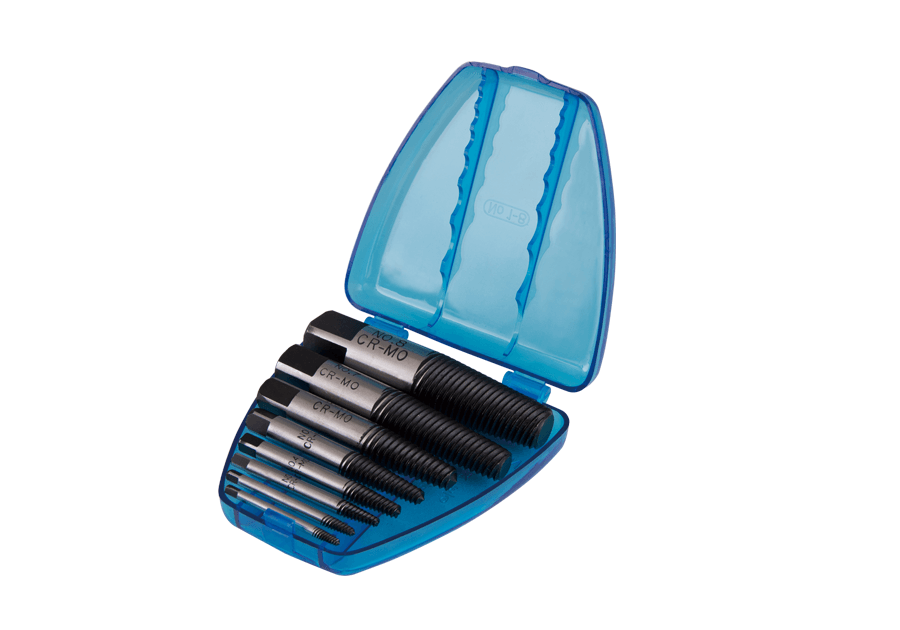

KING TONY 11208SQ is an eight-piece extractor set for removing damaged screws, bolts and studs. Its eight extractor sizes cover metric fastener sizes from M3 to M50, with the corresponding imperial capacities listed below.

| Model | 11208SQ |
|---|---|
| Tool pieces | 8 extractors |
| Metric fastener capacity | M3–M50 (by extractor size) |
| Weight | 0.83 kg |
| Component model | Metric fastener capacity | Imperial fastener capacity (in) | Extractor length (mm) |
|---|---|---|---|
| 2127A-06M | M3–M6 | 1/8–1/4 | 51.5 |
| 2127A-08M | M6–M8 | 1/4–5/16 | 58.0 |
| 2127A-11M | M8–M11 | 5/16–7/16 | 66.0 |
| 2127A-14M | M11–M14 | 7/16–9/16 | 73.5 |
| 2127A-18M | M14–M18 | 9/16–3/4 | 81.0 |
| 2127A-24M | M18–M24 | 3/4–1 | 91.0 |
| 2127A-33M | M24–M33 | 1–1-3/8 | 106.0 |
| 2127A-50M | M33–M50 | 1-3/8–2 | 112.0 |
Eight extractors per priced set. The lengths above refer to individual extractors, not the storage case.
