Name: KING TONY 1060-22 22 mm Combination Wrench
Brand: KING TONY
SKU: KT-1060-22
Price: 470 TWD
Availability: InStock

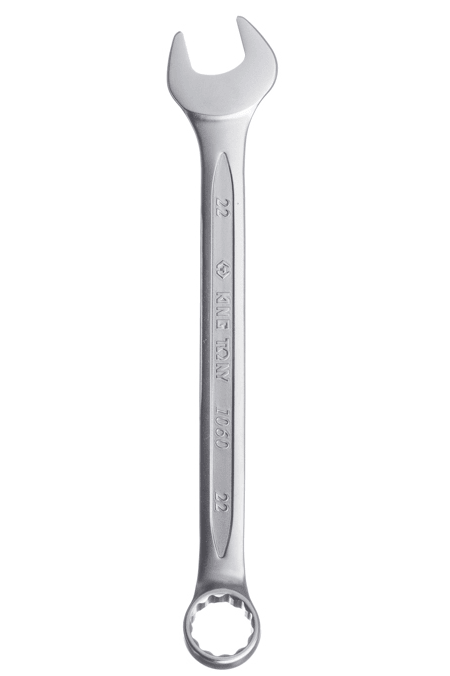

The KING TONY 1060-22 is a 22 mm metric combination wrench with an open end and a ring end for matching nuts and bolts. The European slimline tool is 265 mm long and made from chrome vanadium alloy steel with a chrome-plated finish. This listing is for one wrench, not a multi-size set.

Features

Open and ring ends of the same 22 mm size let you choose an approach to the fastener.

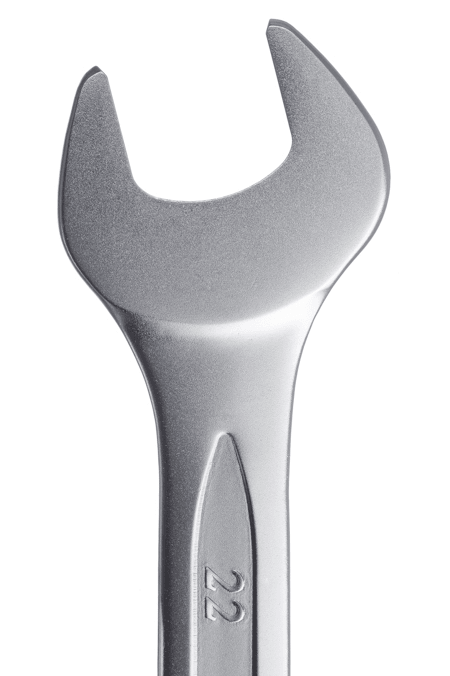

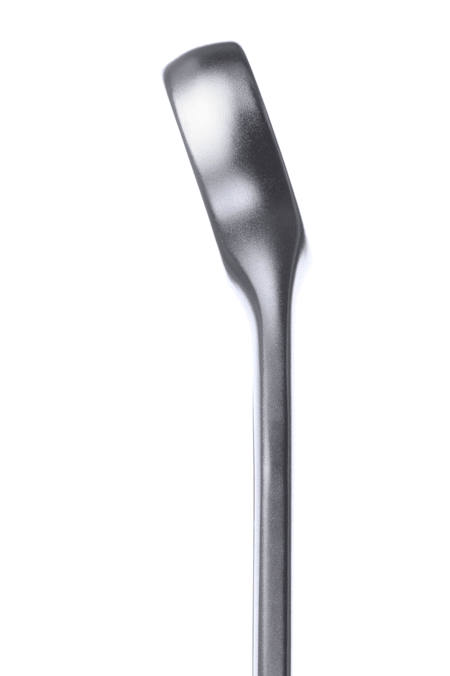

The open head is angled 15° and the ring end is offset 15° from the shaft.
Slimline chrome vanadium alloy steel construction with chrome plating.
The metric series conforms to DIN 3113 and ISO 7738.

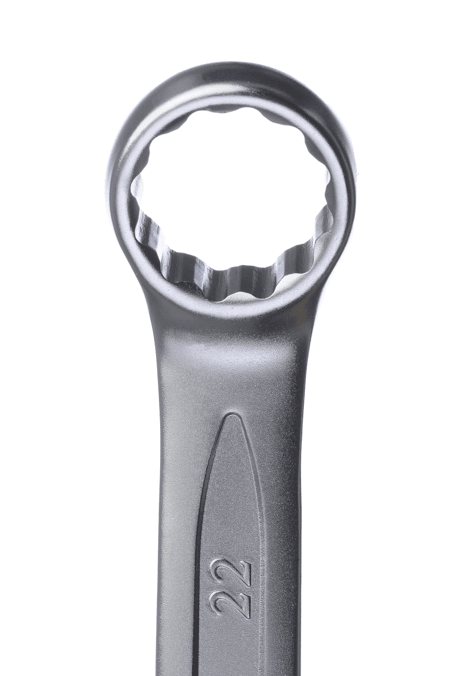

KING TONY 1060-22 ring-end close-up with the 22 size marking visible — Manufacturer-authorized photograph of the 1060-22 ring end, marked 22 mm. The offer contains one complete wrench, not just the pictured end.

KING TONY 1060-series geometry diagram: 15-degree open head and ring offset; length L is 265 mm for model 1060-22 — Manufacturer’s 1060-series structural diagram, not a scale photograph. Model 1060-22 has an overall length L of 265 mm.

Specifications

Brand	KING TONY
Model	1060-22
Tool type	Metric combination wrench
Size	22 mm
Overall length	265 mm
Weight, Taiwan manufacturer table	243 g
Open-head angle	15°
Ring-end offset	15°
Material	Chrome vanadium alloy steel
Finish	Chrome plated
Metric standards	DIN 3113; ISO 7738
Sale unit	One wrench

What's in the Box

KING TONY 1060-22 22 mm combination wrench ×1
