Name: KING TONY 1060-09 9 mm Combination Wrench
Brand: KING TONY
SKU: KT-1060-09
Price: 150 TWD
Availability: InStock

The KING TONY 1060-09 is a single 9 mm metric combination wrench with an open end and a 12-point ring end for matching nuts and bolts. Its European slimline chrome-vanadium steel body has a chrome-plated finish. The 9 mm model is 135 mm long and weighs 32 g.

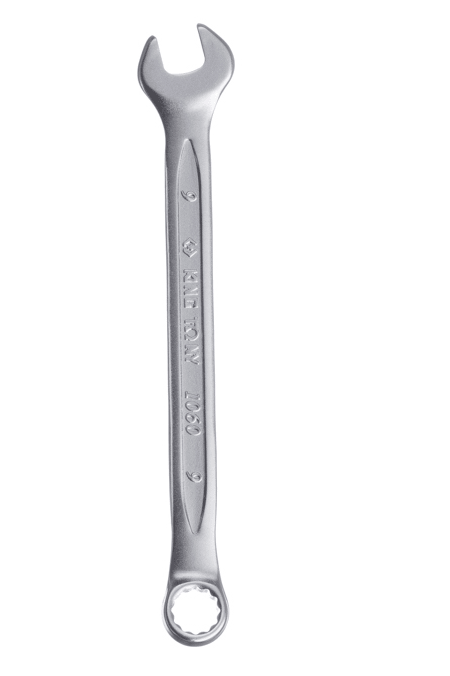

KING TONY 1060-09 9 mm combination wrench, full front view, marked 9, KING TONY and 1060 — KING TONY 1060-09 9 mm combination wrench, full front view. Sold as one individual wrench.

Features

One open end and one 12-point ring end, both for the 9 mm metric size.
The open end is angled 15°; the ring end is offset 15° from the shaft.
European slimline design in chrome-vanadium steel with a chrome-plated finish.
The metric series conforms to DIN 3113 and ISO 7738.

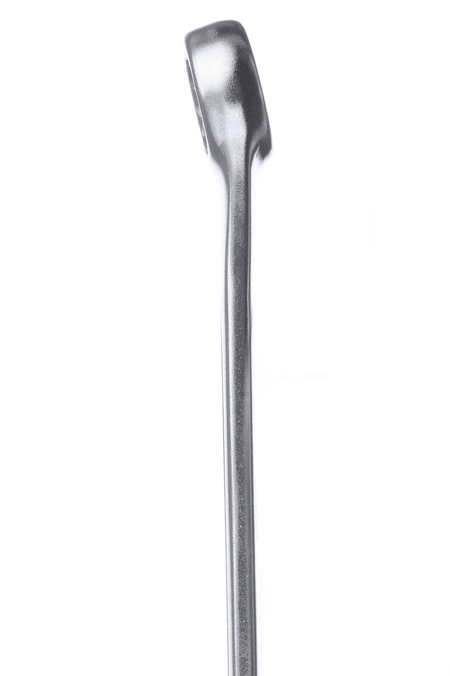

KING TONY 1060-09 9 mm combination wrench, ring-end side and offset shaft close-up — 1060-09 ring-end side close-up showing the offset relative to the shaft.

KING TONY 1060-series dimensional drawing with 15-degree ends and length L; the 1060-09 is 135 mm long — 1060-series dimensional illustration: both ends are angled 15°; length L for the 1060-09 is 135 mm.

Specifications

Brand	KING TONY
Model	1060-09
Tool type	Metric combination wrench, open end and 12-point ring end
Size	9 mm
Length	135 mm
Weight	32 g
Open-end angle	15°
Ring-end offset	15°
Material	Chrome-vanadium steel
Finish	Chrome plated
Metric standards	DIN 3113, ISO 7738
Sales unit	One individual wrench

Package Contents

KING TONY 1060-09 9 mm combination wrench ×1

Features

One open end and one 12-point ring end, both for the 9 mm metric size.
The open end is angled 15°; the ring end is offset 15° from the shaft.
European slimline design in chrome-vanadium steel with a chrome-plated finish.
The metric series conforms to DIN 3113 and ISO 7738.

Specifications

Brand	KING TONY
Model	1060-09
Tool type	Metric combination wrench, open end and 12-point ring end
Size	9 mm
Length	135 mm
Weight	32 g
Open-end angle	15°
Ring-end offset	15°
Material	Chrome-vanadium steel
Finish	Chrome plated
Metric standards	DIN 3113, ISO 7738
Sales unit	One individual wrench

Package Contents

KING TONY 1060-09 9 mm combination wrench ×1
