Name: KING TONY 1044MR 44-Piece Power Bit Set
Brand: KING TONY
SKU: KT-1044MR
Price: 2500 TWD
Availability: InStock

The KING TONY 1044MR is a 44-piece power bit set combining hex, Phillips, slotted, Torx, tamper-resistant Torx and Pozidriv bits with a magnetic quick-release bit holder and 6, 8 and 10 mm magnetic nut setters. The plastic case keeps the short bits and 50/70 mm power bits in separate positions for selection by screw profile and size.

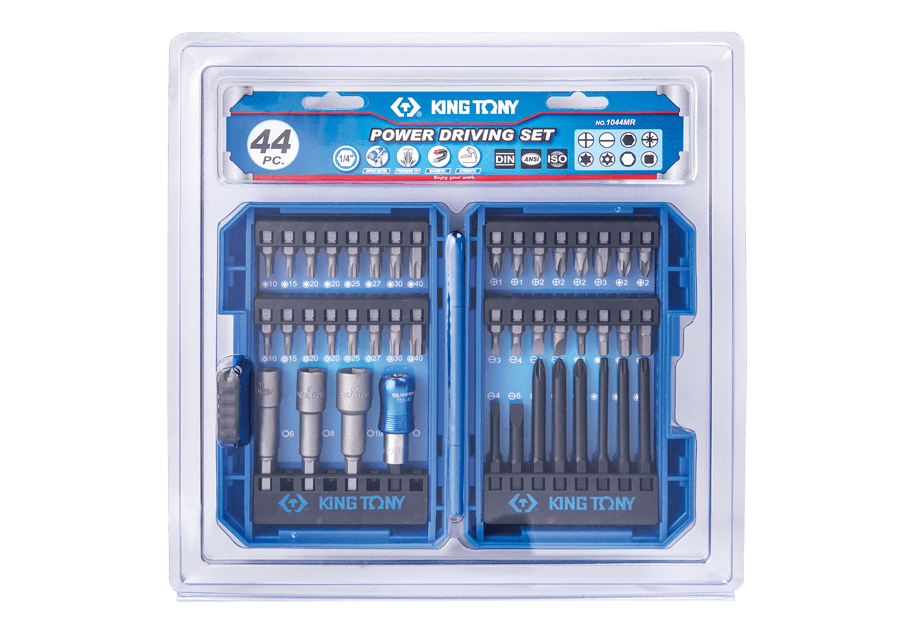

KING TONY 1044MR 44-piece power bit set in its plastic case

Features

44 tool components: 32 short bits, 8 long power bits, 1 magnetic quick-release holder and 3 magnetic nut setters.
The 1025T short Torx and 1025U short tamper-resistant Torx selections extend from T10 to T40, with two T20 and two T20H bits respectively. An additional 7170T 70 mm T20 bit is included. The complete sizes and quantities are listed below.
The 753-63 magnetic bit holder has a quick-release sleeve and a 1/4-inch interface.
Plastic storage case dimensions: 150 × 103 × 46 mm.

Specifications

Brand	KING TONY
Manufacturer model	1044MR
SKU	KT-1044MR
Piece count	44 tool components
Bit profiles	Hex, Phillips PH, slotted, Torx T, tamper-resistant Torx TH, Pozidriv PZ
Long bit lengths	7150S: 50 mm; 7170P / 7170T / 7170Z: 70 mm
Magnetic quick-release holder	753-63, 1/4 inch
Magnetic nut setter sizes	6, 8, 10 mm
Plastic case dimensions	150 × 103 × 46 mm (case dimensions, not individual tool dimensions)
Weight	0.63 kg
Priced unit	One 1044MR set (組)

Package Contents

One 1044MR set contains the following 44 tool components. Slotted sizes are tip width × thickness in mm.

1025H hex bits ×4: H3, H4, H5 and H6, one each.
1025P Phillips bits ×6: PH1 ×2, PH2 (6 mm diameter) ×2, PH2 (4.7 mm diameter) ×1 and PH3 ×1.
1025S slotted bits ×4: 3.0 × 0.5, 4.0 × 0.5, 5.0 × 0.8 and 6.0 × 1.0, one each.
1025T Torx bits ×8: T10, T15, T25, T27, T30 and T40, one each; T20 ×2.
1025U tamper-resistant Torx bits ×8: T10H, T15H, T25H, T27H, T30H and T40H, one each; T20H ×2.
1025Z Pozidriv bits ×2: PZ2 ×2.
7150S 50 mm slotted power bits ×2: 4.0 × 0.8 and 6.0 × 1.0, one each.
7170P 70 mm Phillips power bits ×2: PH2 ×2.
7170T 70 mm Torx power bits ×3: T15, T20 and T25, one each.
7170Z 70 mm Pozidriv power bit ×1: PZ2 ×1.
753-63 magnetic quick-release bit holder ×1: 1/4 inch.
761M magnetic nut setters ×3: 6, 8 and 10 mm, one each.

No downloads available yet

Contact JACO if you need a datasheet, certificate or another technical document.

General

Piece Count: 44
Torx Size Range: 10 – 40 T

Dimensions

Weight: 0.63 kg

Reviews & Q&A

No reviews yet. Be the first to review this product.

Features

44 tool components: 32 short bits, 8 long power bits, 1 magnetic quick-release holder and 3 magnetic nut setters.
The 1025T short Torx and 1025U short tamper-resistant Torx selections extend from T10 to T40, with two T20 and two T20H bits respectively. An additional 7170T 70 mm T20 bit is included. The complete sizes and quantities are listed below.
The 753-63 magnetic bit holder has a quick-release sleeve and a 1/4-inch interface.
Plastic storage case dimensions: 150 × 103 × 46 mm.

Specifications

Brand	KING TONY
Manufacturer model	1044MR
SKU	KT-1044MR
Piece count	44 tool components
Bit profiles	Hex, Phillips PH, slotted, Torx T, tamper-resistant Torx TH, Pozidriv PZ
Long bit lengths	7150S: 50 mm; 7170P / 7170T / 7170Z: 70 mm
Magnetic quick-release holder	753-63, 1/4 inch
Magnetic nut setter sizes	6, 8, 10 mm
Plastic case dimensions	150 × 103 × 46 mm (case dimensions, not individual tool dimensions)
Weight	0.63 kg
Priced unit	One 1044MR set (組)

Package Contents

One 1044MR set contains the following 44 tool components. Slotted sizes are tip width × thickness in mm.

1025H hex bits ×4: H3, H4, H5 and H6, one each.
1025P Phillips bits ×6: PH1 ×2, PH2 (6 mm diameter) ×2, PH2 (4.7 mm diameter) ×1 and PH3 ×1.
1025S slotted bits ×4: 3.0 × 0.5, 4.0 × 0.5, 5.0 × 0.8 and 6.0 × 1.0, one each.
1025T Torx bits ×8: T10, T15, T25, T27, T30 and T40, one each; T20 ×2.
1025U tamper-resistant Torx bits ×8: T10H, T15H, T25H, T27H, T30H and T40H, one each; T20H ×2.
1025Z Pozidriv bits ×2: PZ2 ×2.
7150S 50 mm slotted power bits ×2: 4.0 × 0.8 and 6.0 × 1.0, one each.
7170P 70 mm Phillips power bits ×2: PH2 ×2.
7170T 70 mm Torx power bits ×3: T15, T20 and T25, one each.
7170Z 70 mm Pozidriv power bit ×1: PZ2 ×1.
753-63 magnetic quick-release bit holder ×1: 1/4 inch.
761M magnetic nut setters ×3: 6, 8 and 10 mm, one each.
