Name: CHESCO CH-T311PA-11CCS Automatic Locking C-Clamp with Swivel Pads 11吋
Brand: CHESCO
SKU: CH-T311PA-11CCS
Price: 870 TWD
Availability: InStock

The CHESCO CH-T311PA-11CCS automatic locking C-clamp (model T311PA, 11 in / 330 mm, with swivel pads) is a Taiwanese-made C-clamp for welding set-up, metal fabrication, sheet-metal assembly and workshop maintenance where one-handed clamping matters.

A patented automatic locking mechanism makes the jaws adjust themselves to the thickness of the workpiece — squeeze the handles to lock and lift the release lever to unlock, with no thumb-screw to fine-tune. The jaws are heat-treated chrome vanadium alloy steel and the handles are high carbon steel with a corrosion-resistant nickel-plated finish. Jaw capacity is 72 mm, internal dimension 100 mm and jaw width 85 mm. Flat oscillating swivel pads add grip while protecting the workpiece, and a pressure adjustment knob on the body sets the clamping force to suit the job.

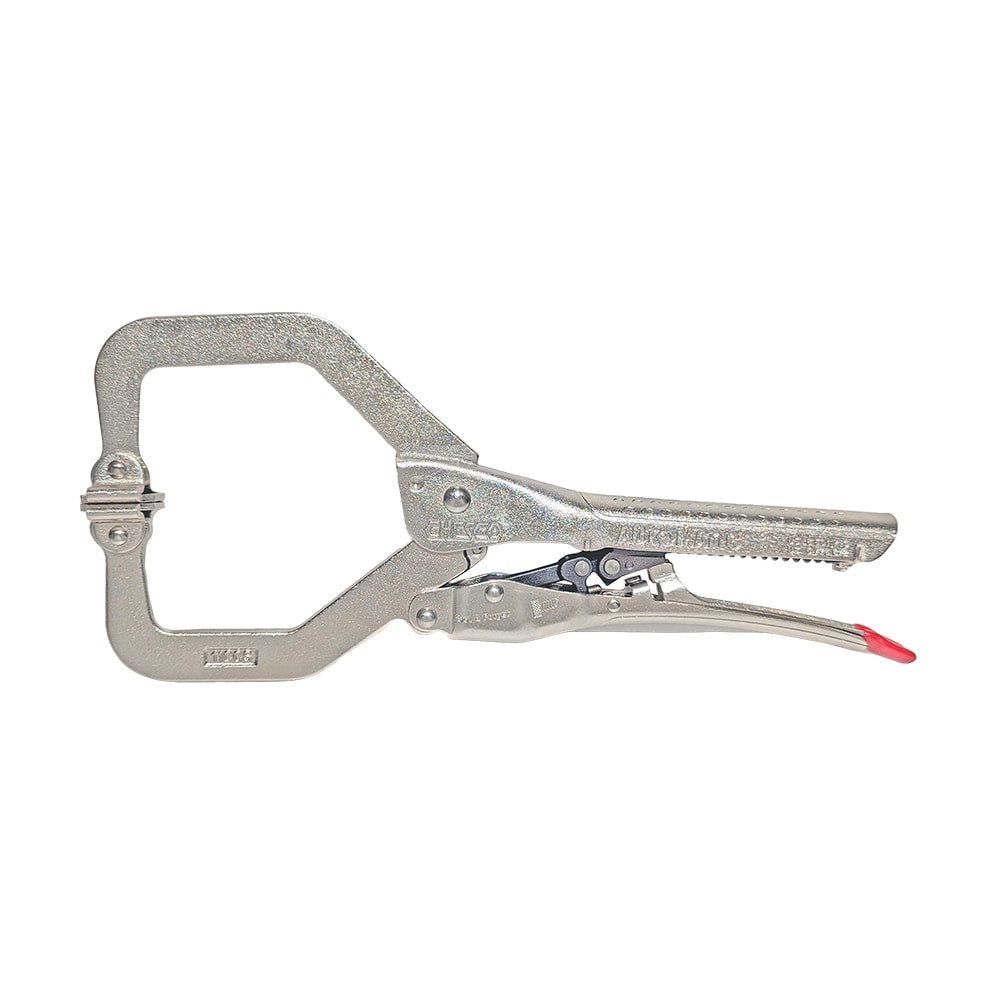

CHESCO automatic locking C-clamp with swivel pads T311PA 11 inch product identification graphic

Features & Benefits

Automatic locking: the jaws adjust to material thickness by themselves — no thumb-screw tuning, just squeeze the handles to lock.
Swivel pads: flat oscillating pressure pads add grip while protecting the workpiece surface.
Pressure adjustment knob: turn clockwise to increase clamping pressure, anticlockwise to reduce it.
Quick release lever: lift to unlock, then clamp the next workpiece straight away.
Chrome vanadium alloy steel jaws are heat-treated for hardness and durability; nickel-plated finish resists corrosion.
Made in Taiwan by CHESCO; patented automatic locking mechanism.

Specifications

Brand	CHESCO
Model	CH-T311PA-11CCS
Product type	Automatic locking C-clamp with swivel pads
Overall length	11 in / 330 mm
Jaw capacity	72 mm
Internal dimension	100 mm
Jaw width	85 mm
Jaw material	Chrome vanadium alloy steel
Handle material	High carbon steel
Finish	Nickel plated
Standard packing	PE bag
Country of origin	Taiwan
Unit	Piece
Barcode	4711508980454

What's in the Box

CHESCO CH-T311PA-11CCS automatic locking C-clamp with swivel pads x1
