Name: CHESCO CH-T306RA-7CC Automatic Locking C-Clamp 7 in
Brand: CHESCO
SKU: CH-T306RA-7CC
Price: 570 TWD
Availability: InStock

The CHESCO CH-T306RA-7CC automatic locking C-clamp is a 7 in / 230 mm C-type locking clamp made in Taiwan for holding and fixing metal workpieces — one-handed clamping during metal fabrication, assembly and maintenance work.

The body uses a patented automatic locking system that sets the jaw opening to the thickness of the workpiece, so there is no thumb screw to fine-tune: bite the jaws onto the workpiece and squeeze the handle to lock, then lift the release lever to open. The jaws are made of chrome-vanadium alloy steel with a nickel-plated finish and open to 50 mm; the handles are high carbon steel and a pressure adjustment knob sets the clamping force to suit the job.

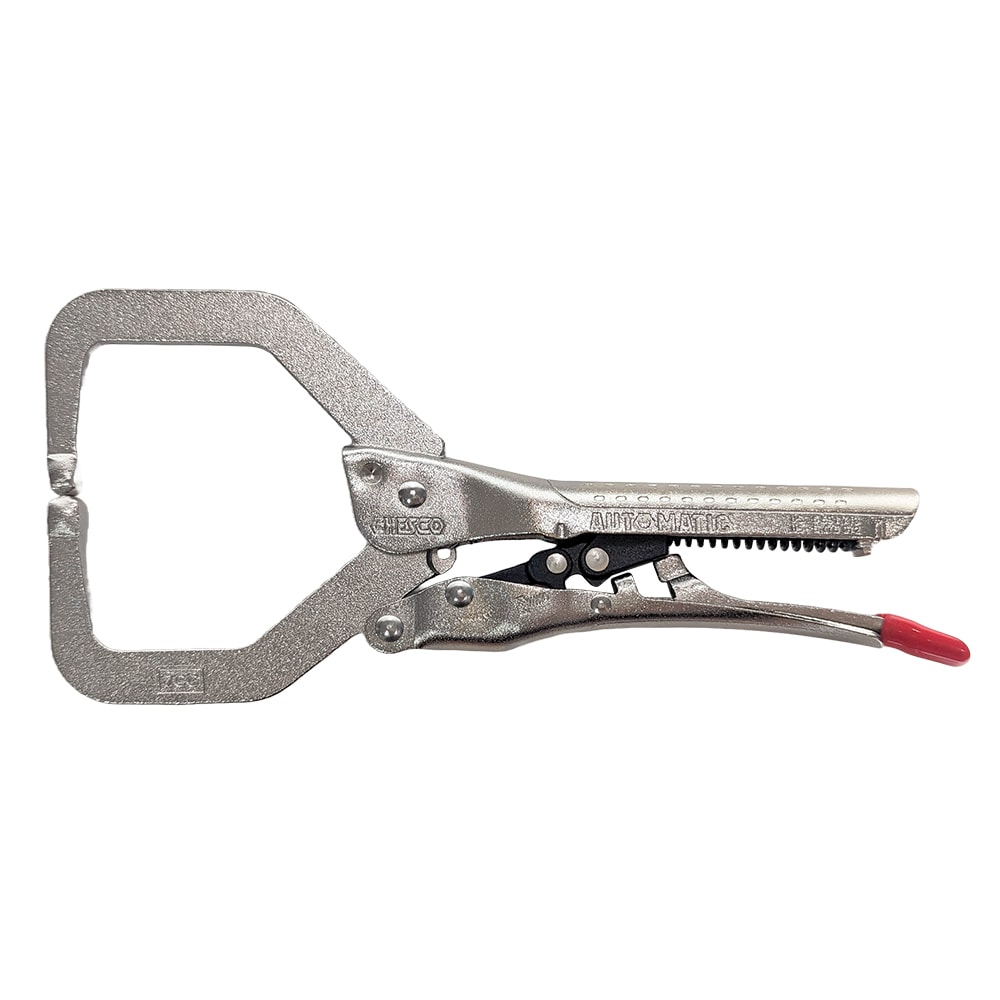

CHESCO CH-T306RA-7CC automatic locking C-clamp 7 inch

Features & Benefits

Patented automatic locking system: the jaw opening follows the workpiece thickness — no bolt to adjust, faster than a conventional locking plier.
One-hand lock, quick release: squeeze the handle to clamp, lift the release lever to open, so you can move straight on to the next workpiece.
Pressure adjustment knob: turn clockwise to increase the clamping force, counter-clockwise to reduce it.
Chrome-vanadium alloy steel jaws: a high-hardness clamping arm for greater durability and grip.
7 in / 230 mm body with a 50 mm jaw opening: a general-purpose size for medium workpieces.
Nickel-plated finish and high carbon steel handles: durable and corrosion resistant; made in Taiwan.

Specifications

Brand	CHESCO
Model	CH-T306RA-7CC
Product type	Automatic Locking C-Clamp
Length	7 in / 230 mm
Jaw opening	50 mm
Internal size	71 mm
Jaw width	68 mm
Jaw material	Chrome-vanadium alloy steel
Handle material	High carbon steel
Finish	Nickel plated
Standard packaging	PE bag
Country of origin	Taiwan
Unit	Piece
Barcode	4711508980379

What's in the Box

CHESCO CH-T306RA-7CC automatic locking C-clamp x1 (PE bag)
