$1,090.00/ 支

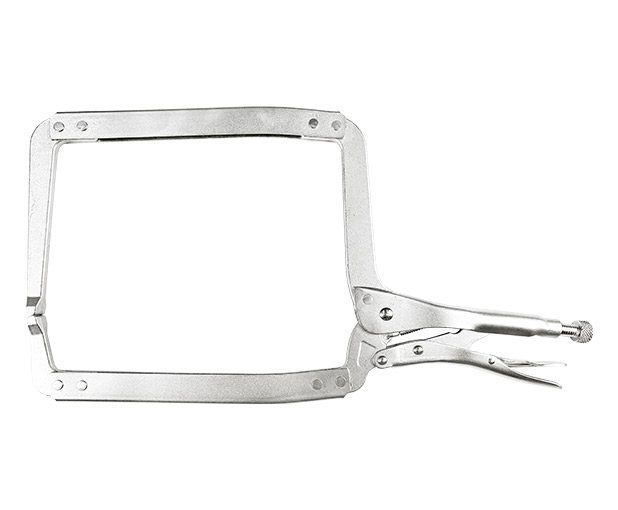

The CHESCO CH-318DR square-jaw locking C-clamp (18 in / 455 mm, model CH-318DR, also listed as 18DR) is a Taiwanese-made clamping tool for welding set-up, metal work, wood working and holding large workpieces.
The square (U-shaped) arms give a 178 mm jaw capacity with 190 mm interior width and 245 mm interior depth, so square, flat and irregular parts can be clamped. The American-style handle locks by squeezing and releases with the lever; the knurled adjustment knob sets jaw capacity and clamping pressure and can be turned while wearing gloves. Jaws are chrome vanadium, handles are chrome molybdenum, and the nickel-plated finish improves corrosion resistance.

| Brand | CHESCO |
|---|---|
| Model | CH-318DR |
| Product type | Square-jaw locking C-clamp |
| Length | 18 in / 455 mm |
| Jaw capacity | 178 mm |
| Interior width | 190 mm |
| Interior depth | 245 mm |
| Jaw material | Chrome vanadium steel |
| Handle material | Chrome molybdenum steel |
| Finish | Nickel plated |
| Handle style | American |
| Standard packing | PE bag |
| Country of origin | Taiwan |
| Unit | Piece |
| Barcode | 4711508980294 |
