Name: CHESCO CH-314PAI Locking C-Clamp with Swivel Pads
Brand: CHESCO
SKU: CH-314PAI
Price: 680 TWD
Availability: InStock

The CHESCO CH-314PAI locking C-clamp with swivel pads is a Taiwanese-made 14 in / 355 mm American-style C-clamp with a 110 mm jaw capacity, built for welding set-up, metal fabrication, sheet-metal work, woodworking and workshop maintenance where parts have to be clamped or held.

The body, jaws and handle are made from heat-treated chrome molybdenum steel with a nickel-plated finish for strength and corrosion resistance. The slim profile reaches into confined spaces, and the smooth jaws concentrate force at the tip so tapered, awkward or more delicate work can be held without damaging its surface. Swivel pads on the jaws self-adjust to the shape of the workpiece and keep a firm grip on irregular or uneven surfaces. The American-style handle locks with a single squeeze and releases with a press of the lever, and the knurled adjustment knob sets the jaw opening and clamping pressure — useful for welders, sheet-metal workers, carpenters and maintenance technicians.

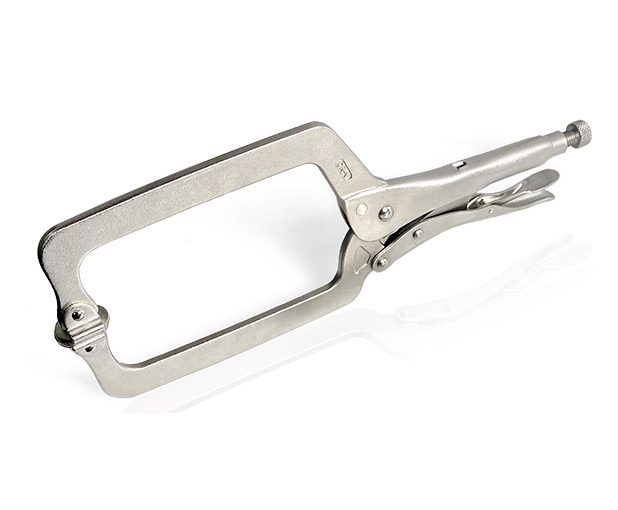

CHESCO CH-314PAI locking C-clamp with swivel pads, 14 in, side view white background product photo

Features & Benefits

14 in / 355 mm American-style C-clamp body with a 110 mm jaw capacity, 90 mm interior width and 150 mm interior depth for plate and larger workpieces.
Heat-treated chrome molybdenum jaws, handle and body for maximum durability and gripping power.
Swivel pads self-adjust to the shape of the workpiece and hold irregular or uneven surfaces firmly.
Smooth jaws concentrate force at the tip to hold tapered, awkward or delicate work without damaging its surface.
Slim profile reaches into confined, narrow spaces; the American-style handle locks with one hand and releases with the lever.
Suited to welding, metal fabrication, sheet-metal work, woodworking and engineering jobs; made in Taiwan and supplied in a PE bag.

Specifications

Brand	CHESCO
Model	CH-314PAI
Product type	Locking C-Clamp with Swivel Pads
Length	14 in / 355 mm
Jaw capacity	110 mm
Interior width	90 mm
Interior depth	150 mm
Jaw material	Chrome Molybdenum
Handle material	Chrome Molybdenum
Finish	Nickel Plated
Handle style	American
Standard packing	PE bag
Country of origin	Taiwan
Unit	Piece
Barcode (EAN-13)	4711508980263

What's in the Box

CHESCO CH-314PAI locking C-clamp with swivel pads x1

No downloads available yet

Contact JACO if you need a datasheet, certificate or another technical document.
