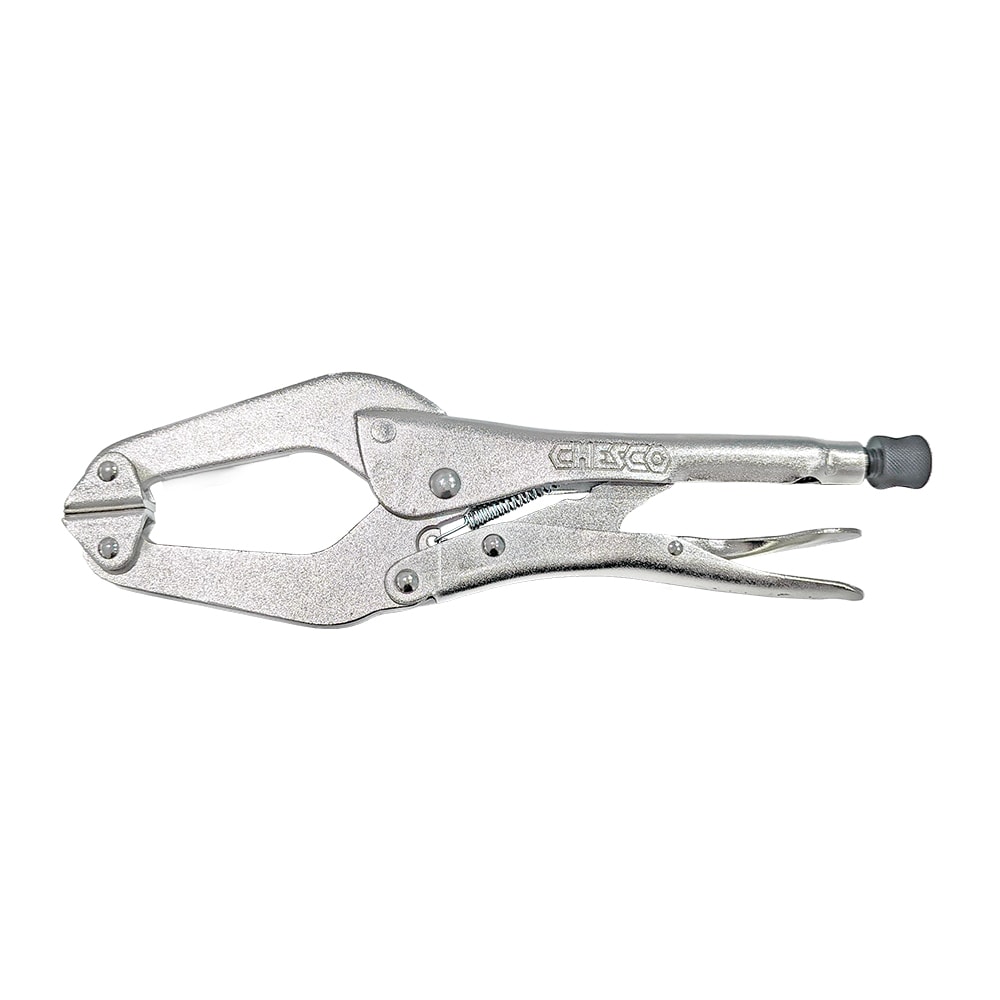

FPSFlexible PaymentBank TransferThe CHESCO CH-310WP swivel-pad welding clamp (10 in / 280 mm) is a Taiwanese-made clamping tool with smooth swivel pads on the jaws, used to hold workpieces for welding set-up, metal fabrication and sheet-metal work.
The jaws and handle are made of chrome molybdenum alloy steel, and the jaws, handle, lever and linkage arm are shot peened and finished with durable nickel plating for corrosion resistance; the spring is high-carbon steel wire that withstands repeated loading. The swivel pads self-adjust to the workpiece, so sheet metal and angular stock stay firmly held even on irregular or uneven surfaces, while the smooth pad faces help prevent scratches; jaw capacity is 100 mm. The American-style handle locks with a one-handed squeeze, the release lever opens it, and the knurled end knob sets jaw capacity and clamping pressure.
| Brand | CHESCO |
|---|---|
| Model | CH-310WP |
| Product type | Swivel-pad welding clamp |
| Length | 10 in / 280 mm |
| Jaw capacity | 100 mm |
| Jaw material | Chrome molybdenum steel |
| Handle material | Chrome molybdenum steel |
| Finish | Nickel plated |
| Handle style | American |
| Country of origin | Taiwan |
| Unit | Piece |
| Barcode | 4711508980218 |
